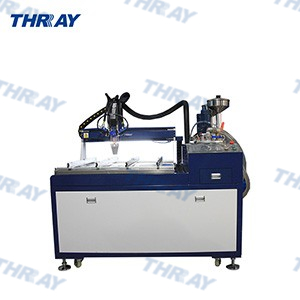

Two-component filling Glue machine-LR 771

Product Information

Product parameters

1, MACHINE MODEL: LR-771Z

2, Glue Ratio: 1:1-10:1 between any fixed ratio (for SI Bao 4808 glue)

3, Glue Speed: 1-12g/S

4, glue accuracy: ± 2%

5, program stock: 99

6, Effective Travel: 700 * 700 * 100mm

7, operation: Manual/automatic/third-party Signal

8, proportional control: PLC/double cylinder plunger pump

9, flow control: DIGITAL INPUT

10, programming: teaching programming

11, automatic control system: touch screen/hand-held switch

12, mixing: Dynamic Mixing (including double automatic cleaning function) , storage barrel, stainless steel barrel a (25L) and B (10L) , double plastic bucket free switching mode

13, liquid level induction: (low level/high level/limit level)

14, plastic bucket agitation: Glue Filtration, constant temperature heating (room temperature to 60 °)

15, power: 220V/50Hz/3500W

16, input pressure: 0.4 MPA-0.7 MPA

17, appearance size: 2000mm × 1300MM X1500MM

18, appearance material: cold-rolled steel plate/industrial aluminum profile/stainless steel/sheet metal
