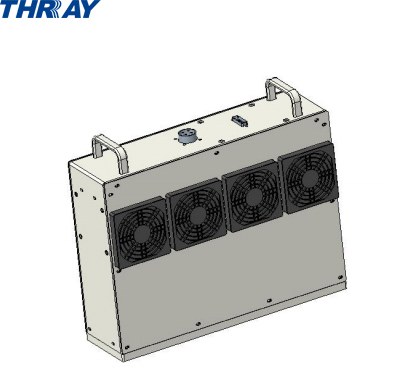

R07S0XF30X300 curing lamp

Product Information

Product description

R07S0XF30X300 surface light source adopts high performance UV LED through array optimization design, compared with traditional technology, mercury lamp has the characteristics of low power consumption, long life, high energy, uniform and stable output, fast switch and so on. Can meet, electroacoustic curing, offset printing, special printing, product coating and other industries use demand. Different wavelength devices can be selected for different use requirements.

Scope of application

• 1.Speakers,

  2.Receiver Receiver


• 3.Earphones, earplugs

• 4.Offset printing

• 5.Gravure, lithographic, relief, screen printing

• 6.Paper finish

• 7.Product surface coating

Product characteristics

1 Low power consumption, long service LIFE UV LED conversion efficiency than the traditional mercury lamp, and greatly increased service life.

2 High Energy, uniform and stable output. Under normal working distance (0mm-50mm) , the energy can be evenly irradiate to the surface of the articles to be cured. At 20mm height, the radiation energy can reach 5391mW/cm (405nm, EIT energy meter, Q10) . In the later period, the production needs to be the same grade lamp beads, but the same grade lamp beads due to process errors and other factors, so when the mass production of this type of lamp source in the use of this grade lamp beads, the lower limit of energy is estimated to be 4852 MW/CM.

3 There are many combinations of the lamp cap and the controller, one is the combination of one controller and one lamp cap, the other is the combination of one controller and two lamp caps. A variety of combinations to adapt to a variety of use needs.

4 In addition to the various control methods, the THRAYRAD1C 2000 controller can be used to control the equipment switch independently, and different schemes can be made according to the different requirements of customers to make the equipment more convenient to use. Such as direct control by the client, or additional control methods such as: foot switch, photoelectric switch and so on.

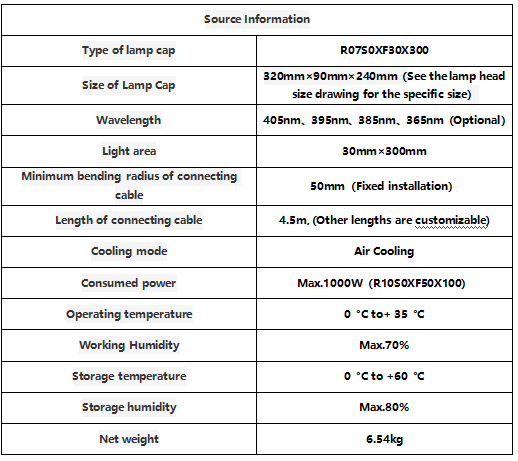

Technical parameter
