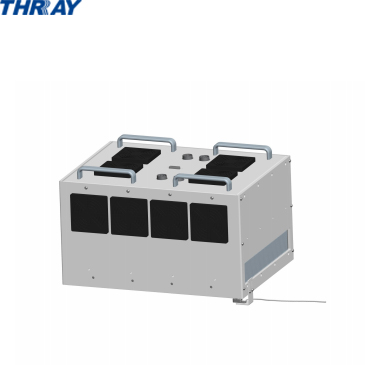

R13S6XF200X320 curing lamp

Product Information

Product description

R13S6XF200X320 surface light source adopts high performance UV LED and is optimized by array design. Compared with traditional mercury lamp, R13S6XF200X320 surface light source has the characteristics of low power consumption, long life, high energy, uniform and stable output, fast switch and so on. Can meet, electroacoustic curing, offset printing, special printing, product coating, packaging and other industries use demand. For different use needs, different wavelength of equipment can be selected.

Scope of application

• 1.Speakers,

  2.Receiver Receiver


• 3.Earphones, earplugs

• 4.Offset printing

• 5.Gravure, lithographic, relief, screen printing

• 6.Paper finish

• 7.Product surface coating

Product characteristics

1 Low power consumption, long service LIFE UV LED conversion efficiency than the traditional mercury lamp, and greatly increased service life.

2 High Energy, uniform and stable output. Under normal working distance (10mm-30mm) , the energy can be uniformly irradiate to the surface of the articles to be cured. At 20mm height, the radiation energy can reach 1904mW/cm2(365nm, EIT energy meter) .

3 There are many combinations of the lamp cap and the controller, one is the combination of one controller and one lamp cap, the other is the combination of one controller and two lamp caps. A variety of combinations to adapt to a variety of use needs.

4 In addition to the various control methods, the device switch can be independently controlled by the THRAYRAD1C 600 controller (button version) of our company, and different schemes can be made according to different requirements of customers to make the device more convenient to use. For example, direct control by the client, or additional, other control methods such as: foot switch, photoelectric switch, etc. .

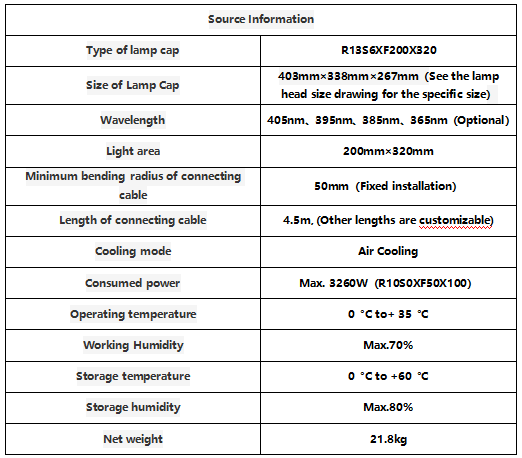

Technical parameter
