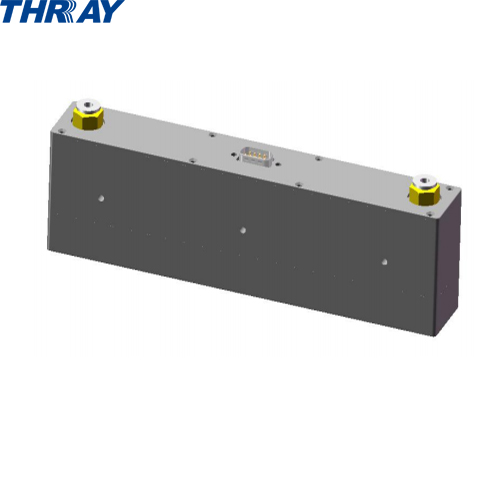

R13S6XQ200X10 Plus lamp

Product Information

Product description

The R13S6XQ200X10 PLUS LINEAR light source adopts high performance UV LED and is optimized by array design. Compared with the traditional mercury lamp, the R13S6XQ200X10 Plus linear light source has the characteristics of low power consumption, long life, high energy, uniform and stable output, fast switch and so on. It can meet the needs of electroacoustic curing, offset printing, special printing, product coating and other industries. Different wavelength devices can be selected for different use requirements.

Scope of application

• Speakers,

• speakers earphones,

• earplugs offset printing gravure,

• lithographic,

• letterpress,

• screen printing paper finish products surface coating

Product characteristics

1 Low power consumption, long service LIFE UV LED conversion efficiency than the traditional mercury lamp, and greatly increased service life.

2 High Energy, uniform and stable output. Under normal working distance (0mm-50mm) , the energy can be evenly irradiate to the surface of the articles to be cured. At 5mm height/working, the radiation energy can reach 9041mW/cm (365nm, EIT energy meter, Q33) . In the later period, the production needs to be the same grade lamp beads, but the same grade lamp beads due to process errors and other factors, so when the mass production of this type of lamp source in the use of this grade lamp beads, the lower limit of energy is estimated to be 8136 MW/CM.

3 There are many combinations of the lamp cap and the controller, one is the combination of one controller and one lamp cap, the other is the combination of one controller and two lamp caps. A variety of combinations to adapt to a variety of use needs.

4 In addition to the thraypot1c-300-2.6 a (2-in-1) controller, which can be used to control the device switch independently, various control methods/schemes can be developed according to the different needs of customers to make the device more convenient to use. Such as direct control by the client, or additional control methods such as:/Foot switch, photoelectric switch and so on.

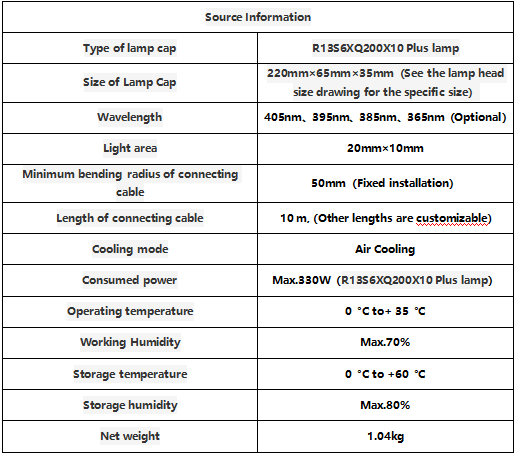

Technical parameter
