THRAYLINE 350X10 405B

Product Information

Product description

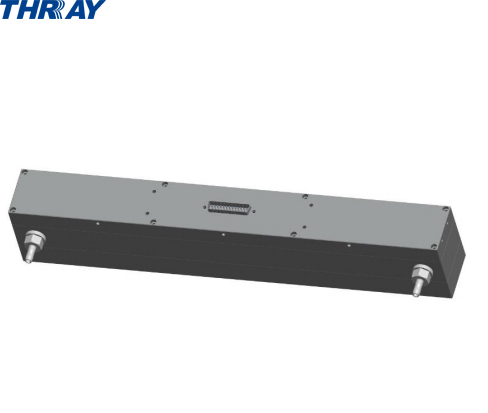

THRAYLINE 350x10405b light source adopts high performance UV LED and is optimized by array design. Compared with traditional mercury lamp, THRAYLINE 350x10405b light source has the characteristics of low power consumption, long life, high energy, uniform and stable output, fast switch and so on. Can meet, electroacoustic curing, offset printing, special printing, product coating and other industries use demand. Different wavelength devices can be selected for different use requirements.

Scope of application

• 1.Speakers,

  2.Receiver Receiver


• 3.arphones, earplugs

• 4.Offset printing

• 5.Gravure, lithographic, relief, screen printing

• 6.Paper finish

• 7.Product surface coating

Product characteristics

1 Low power consumption, long service LIFE UV LED conversion efficiency than the traditional mercury lamp, and greatly increased service life.

2 High Energy, uniform and stable output. Under normal working distance (10mm-30mm) , the energy can be uniformly irradiate to the surface of the articles to be cured. At 30MM height/working, the radiation energy can reach 4630mW/cm2(405nm, EIT energy meter) .

3 There are many combinations of the lamp cap and the controller, one is the combination of one controller and one lamp cap, the other is the combination of one controller and two lamp caps. A variety of combinations to adapt to a variety of use needs.

4 Various control methods, in addition to our THRAYPOWER1A/100-122A control box + PLC combined control, but also according to the different needs of customers to develop different programs to more convenient use of the equipment.

Technical parameter
