THRAYLINE 100X10 365B

Product Information

Product description

THRAYLINE 100x10365b line light source adopts high performance UV LED and is optimized by array design. Compared with traditional mercury lamp, THRAYLINE 100x10365b line light source has the characteristics of low power consumption, long life, high energy, uniform and stable output, fast switch and so on. Can meet, electroacoustic curing, offset printing, special printing, product coating and other industries use demand. Different wavelength devices can be selected for different use requirements.

Scope of application

• 1.Speakers,

  2.Receiver Receiver


• 3.arphones, earplugs

• 4.Offset printing

• 5.Gravure, lithographic, relief, screen printing

• 6.Paper finish

• 7.Product surface coating

Product characteristics

1 Low power consumption, long service LIFE UV LED conversion efficiency than the traditional mercury lamp, and greatly increased service life.

2 High Energy, uniform and stable output. Under normal working distance (15mm-35mm) , the energy can be uniformly irradiate to the surface of the articles to be cured. At 25mm height, the radiation energy can reach 845mW/cm2(365nm, EIT energy meter) .

3 In addition to the POT series controller which can control the device switch independently, different schemes can be made according to the different needs of customers to make the device more convenient to use. Such as direct control by the client, or additional control methods such as: foot switch, photoelectric switch and so on.

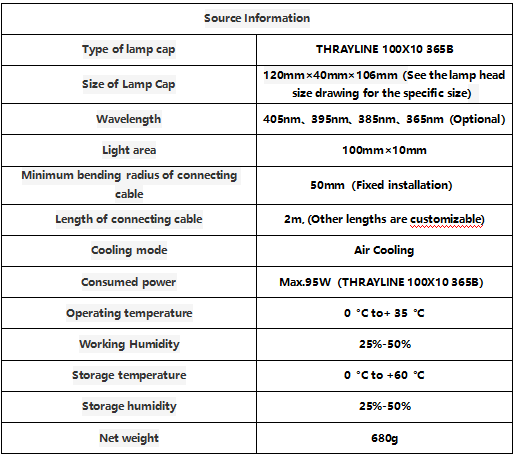

Technical parameter
