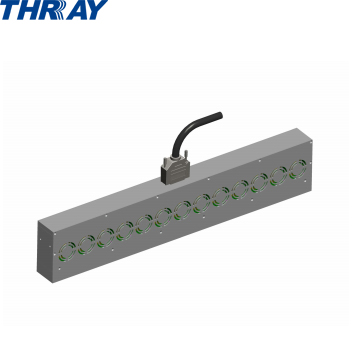

R10S6XF550X10 lamp

Product Information

Product description

R10S6XF550X10 LINEAR light source adopts high performance UV LED and is optimized by array design. Compared with traditional mercury lamp, it has the characteristics of low power consumption, long life, high energy, uniform and stable output and fast switch. Can meet, electroacoustic curing, offset printing, special printing, product coating, packaging and other industries use demand. Different wavelength devices can be selected for different use requirements.

Scope of application

• 1.Speakers,

  2.Receiver Receiver


• 3.arphones, earplugs

• 4.Offset printing

• 5.Gravure, lithographic, relief, screen printing

• 6.Paper finish

• 7.Product surface coating

Product characteristics

1 Low power consumption, long service LIFE UV LED conversion efficiency than the traditional mercury lamp, and greatly increased service life.

2 High Energy, uniform and stable output. Under normal working distance (10mm-30mm) , the energy can be uniformly irradiate to the surface of the articles to be cured, and the radiation energy can reach 5865mW/cm2(365nm, EIT energy meter, Q33) at 20mm height/working. The lower limit of energy is estimated to be 5278mW/cm when using the same shift lamp bead in mass production due to the process error and other factors.

3 There are many combinations of the lamp cap and the controller, one is the combination of one controller and one lamp cap, the other is the combination of one controller and two lamp caps. A variety of combinations to adapt to a variety of use needs.

4 Various control methods, in addition to our THRAYPOWER1B-2400-554A controller independent control device switch, but also according to customers, different needs to formulate different programs to more convenient use of the device. For example, direct control by the client, or additional, other control methods such as: foot switch, photoelectric switch, etc. .

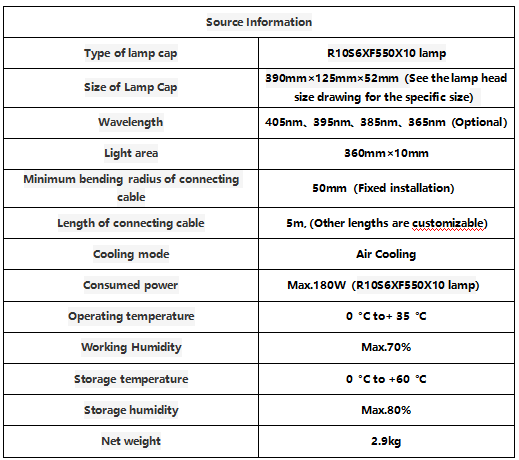

Technical parameter
