R10S0XF20X20 Plus LED UV curing lamp

Product Information

Product description

R10S0XF20X20 Plus point light source adopts high performance UV LED and is optimized by array design. Compared with traditional mercury lamp, it has the characteristics of low power consumption, long life, high energy, uniform and stable output, fast switch and so on. It can meet the needs of electroacoustic curing, offset printing, special printing, product coating and other industries. According to different requirements, the use of different wavelength equipment can be selected.

Scope of application

• Speakers,

• speakers earphones,

• earplugs offset printing gravure,

• lithographic,

• letterpress,

• screen printing paper finish products surface coating

Product characteristics

1 Compact design, small size,The conversion efficiency of UV LED is higher than traditional Mercury Lamp, and the service life is greatly increased.

2 High Energy, uniform and stable output，At normal operating distance (10mm-30mm) , the energy can be uniformly irradiate to the surface of the articles to be cured. At 20mm height, the radiation energy can reach 4728mW/cm2(405nm, EIT energy meter).

3 The lamp cap and controller can be combined in many ways，One drag one is a combination of a controller and a lamp; one drag two is a combination of a controller and two lamp. A variety of combinations to adapt to a variety of use needs.

4 Multiple modes of control， In addition to our THRAYPOT2C-500(20X20Plus one-to-four) control box or THRAYPOT1C/300-0.7 a (button version) controller independent control equipment switch, but also according to customer needs to formulate different plans to more convenient use of the equipment. Such as direct control by the client, or additional control methods such as: foot switch, photoelectric switch and so on.

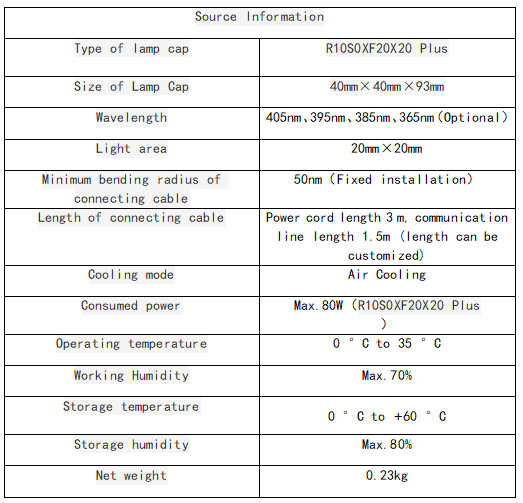

Technical parameter
