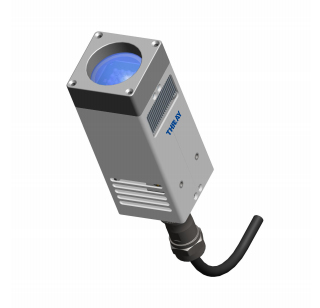

R10S6XF Φ30LED UV curing lamp

Product Information

Product description

R10S6XF Φ30 point light source is made of high performance UV LED and optimized by array design. Compared with traditional mercury lamp, R10S6XF has the characteristics of low power consumption, long life, high energy, uniform and stable output, fast switch and so on. Can meet, electroacoustic curing, offset printing, special printing, product coating, packaging and other industries use demand. Different wavelength devices can be selected for different use requirements.

Scope of application

• Speakers,

• speakers earphones,

• earplugs offset printing gravure,

• lithographic,

• letterpress,

• screen printing paper finish products surface coating

Product characteristics

1 Compact design, small size,The conversion efficiency of UV LED is higher than traditional Mercury Lamp, and the service life is greatly increased.

2 High Energy, uniform and stable output，At normal operating distance (10mm-30mm) , the energy can be uniformly irradiate to the surface of the articles to be cured. At 20mm height, the radiation energy can reach 4386mW/cm2(365nm, EIT energy meter) .

3 The lamp cap and controller can be combined in many ways，One drag one is a combination of a controller and a lamp; one drag two is a combination of a controller and two lamp. A variety of combinations to adapt to a variety of use needs.

4 Multiple modes of control， In addition to the THRAYPOT1C/300-1A controller can be independent control equipment switch, but also according to customer needs, to develop different programs to more convenient use of the equipment. For example, direct control by the client, or additional control, such as: foot switch, photoelectric switch and so on.

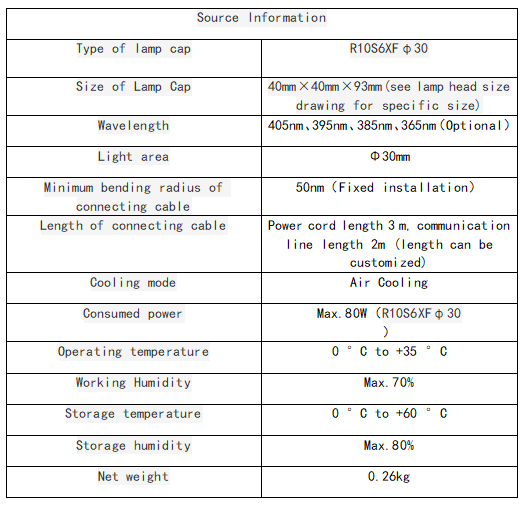

Technical parameter
