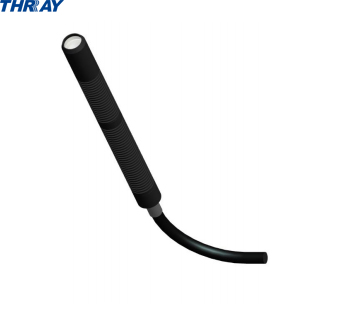

THRAYPOT1-48DX Φ4@20mm 395A LED UV curing lamp

Product Information

Product description

THRAYPOT1-48DX Φ4@20mm 395A point light source is made of high performance UV LED by optical design. Compared with traditional mercury lamp, THRAYPOT1-48DX Φ4@20mm 395A point light source has the characteristics of low power consumption, long life, high energy, uniform and stable output, fast switch and so on.

Scope of application

• Speakers,

• speakers earphones,

• earplugs offset printing gravure,

• lithographic,

• letterpress,

• screen printing paper finish products surface coating

Product characteristics

1 Compact design, small size,The conversion efficiency of UV LED is higher than traditional Mercury Lamp, and the service life is greatly increased.

2 High Energy, uniform and stable output，At the normal working distance (15mm-30mm) , the energy can be uniformly irradiate to the surface of the articles to be cured. At the height of 20mm, the radiation energy can reach 2689mw/cm2(Eit is converted by 395nm point light energy meter) .

3 The lamp cap and controller can be combined in many ways，There are a drag one, one drag two, one drag three, one drag four and so on a variety of lamp and controller combination to meet the needs of a variety of use.

4 Multiple modes of control， In addition to the THRAYPOT2C-40(one-to-four) controller can be independent control equipment switch, but also according to customer needs, plus 1 Other 1 control methods, such as: foot switch, photoelectric switch, etc. to more convenient use of the equipment.

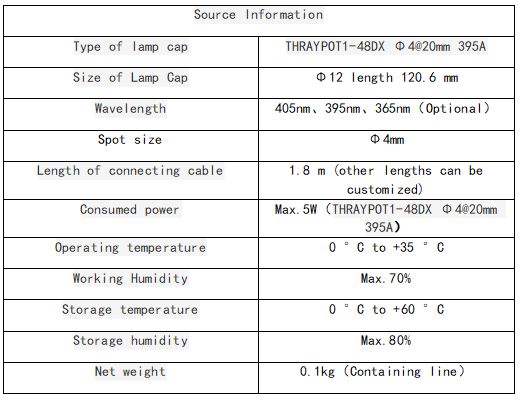

Technical parameter
