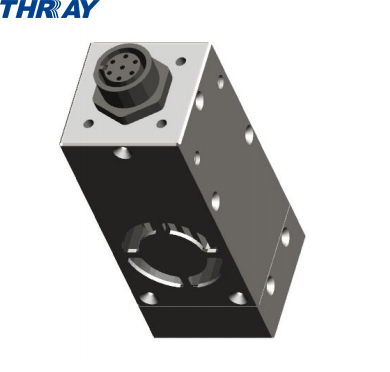

Thraypot1-48za11 20x20 395b LED UV curing lamp

Product Information

Product description

Thraypot1-48za1120x20395b point light source adopts high performance UV LED and is optimized by array design. Compared with traditional mercury lamp, it has the characteristics of low power consumption, long life, high energy, uniform and stable output and fast switch. It can meet the needs of electroacoustic curing, offset printing, special printing, product coating and other industries. Different wavelength devices can be selected for different use requirements.

Scope of application

• Speakers,

• speakers earphones,

• earplugs offset printing gravure,

• lithographic,

• letterpress,

• screen printing paper finish products surface coating

Product characteristics

1 Compact design, small size,The conversion efficiency of UV LED is higher than traditional Mercury Lamp, and the service life is greatly increased.

2 High Energy, uniform and stable output，At the normal working distance (10mm-30mm) , the energy can be uniformly irradiate to the surface of the articles to be cured. At the height of 20mm, the radiation energy can reach 1877mW/cm2(395nm, EIT energy meter) .

3 The lamp cap and controller can be combined in many ways，One drag one is a combination of a controller and a lamp; one drag two is a combination of a controller and two lamp. A variety of combinations to adapt to a variety of use needs.

4 Multiple modes of control， In addition to our RAD controller can be independent control equipment switch, but also according to the different needs of customers to develop different plans to more convenient use of the equipment. Such as direct control by the client, or additional control methods such as: Foot Pedal, switch, photoelectric switch and so on.

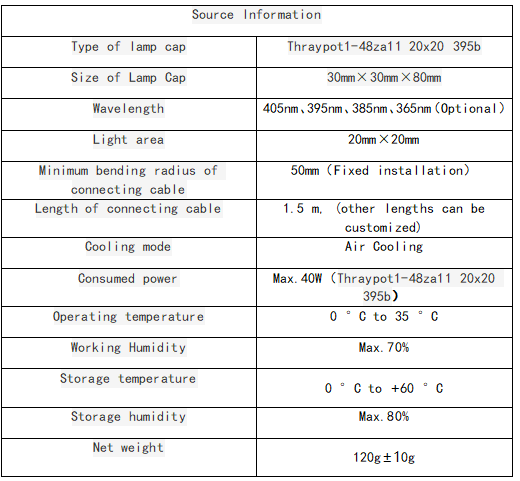

Technical parameter
