THRAYPOT1 20X20

Product Information

Product description

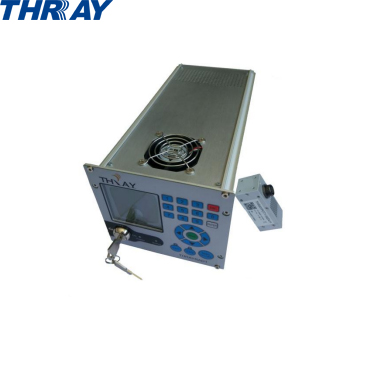

Thraypot120x20 point light source adopts high performance UV LED and is optimized by array design. Compared with traditional mercury lamp, thraypot120x20 point light source has the characteristics of low power consumption, long life, high energy, uniform and stable output, fast switch and so on. It can meet the needs of electroacoustic curing, offset printing, special printing, product coating, packaging and other industries. Different wavelength devices can be selected for different use requirements.

Scope of application

• Speakers,

• speakers earphones,

• earplugs offset printing gravure,

• lithographic,

• letterpress,

• screen printing paper finish products surface coating

Product characteristics

1 Compact design, small size,The conversion efficiency of UV LED is higher than traditional Mercury Lamp, and the service life is greatly increased.

2 High Energy, uniform and stable output，At the normal working distance (10mm-30mm) , the energy can be uniformly irradiate to the surface of the articles to be cured. At 20mm height, the radiation energy can reach 1.8 w/cm2(405nm, EIT energy meter) .

3 The lamp cap and controller can be combined in many ways，One drag one is a combination of a controller and a lamp; one drag two is a combination of a controller and two lamp. A variety of combinations to adapt to a variety of use needs.

4 Multiple modes of control， In addition to our RAD series controller can be independent control equipment switch, according to customer needs, in addition to other, control methods such as: foot switch, photoelectric switch to more convenient use of the equipment

Technical parameter
